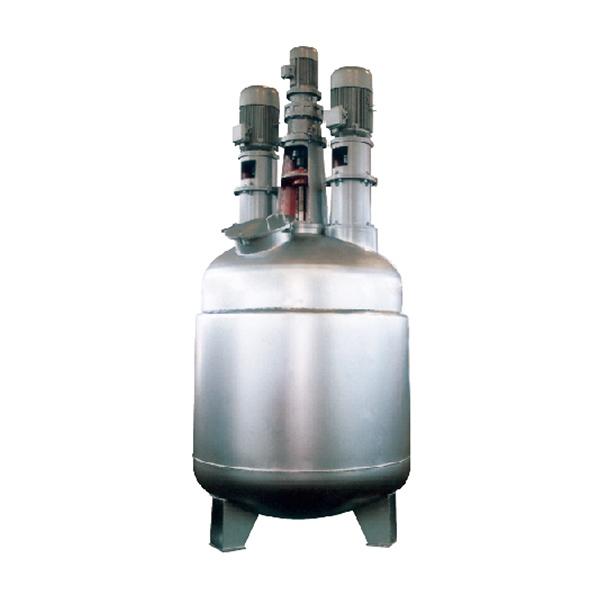

FS model multi-purpose dispersing mixer completely enclosed with a tri shafted design integrating a low speed mass moving anchor stirrer and high speed - duo dispersing mechanics, Extremely useful for medium to high viscosity and thixolropic materials. The machine is suitable for many kinds of materal mixing, dissolving, dispersing and colour preparations. lt features easy operation and strong adaptability and is an ideal muli-purpose mixing machine.
Product parameters
Model | Tank Volume (m3) | Mixer Motor (kw) | Mixing (r/min) | Mixer Dia (mm) | Dispersing Motor (kw) | Dispering (r/min) | Disc Quatity | External Dimensions | ||
---|---|---|---|---|---|---|---|---|---|---|
D | H | H1 | ||||||||
FS-2 | 2 | 5.5 | 50 | 1300 | 18.5 | 0~1450 | 2 | 1400 | 1650 | 1930 |
FS-3 | 3 | 5.5 | 50 | 1500 | 22 | 0~1450 | 2 | 1600 | 1765 | 2000 |
FS-5 | 5 | 7.5 | 50 | 1700 | 30 | 0~1450 | 2 | 1800 | 2048 | 2200 |
FS-6 | 6 | 7.5 | 50 | 1700 | 37 | 0~1450 | 2 | 1800 | 2400 | 2200 |
FS-8 | 8 | 11 | 41 | 1900 | 45 | 0~1450 | 2 | 2000 | 2800 | 2500 |
FS-10 | 10 | 15 | 41 | 2100 | 75 | 0~1450 | 2 | 2200 | 2950 | 2570 |
FS-12 | 12 | 18.5 | 41 | 2300 | 75 | 0~1450 | 2 | 2400 | 3100 | 2620 |
