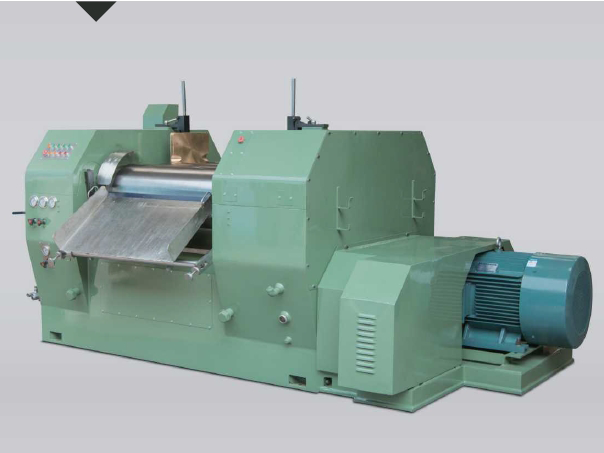

This machine is an improved version based on the KS high-strength grinding machine. All operations are completed hydraulically, resulting in a higher degree of automation and enhanced machine stability. It is primarily used for the thermal processing of rubber masterbatches such as EVA, ABS, PE, PP, and PVC. Additionally, it is suitable for grinding and mixing materials with exceptionally high viscosity and hardness. The roller shaft ends are enlarged, and the gears are made from special materials, ensuring immense power and durability.
Product Specifications
Roller Diameter (mm) | Roller Working Length (mm) | Roller Speed (rpm) | Total System Pressure (Mpa) | Main Motor Power (kw) | Hydraulic Power (kw) | Machine Weight (kg) | Dimensions (mm) | ||
---|---|---|---|---|---|---|---|---|---|
Slow Roller | Medium Roller | Fast Roller | |||||||
400 | 900 | 13.9 | 41.7 | 125 | 6.3 | 30-55kw 980rpm | 2.2kw 1500rpm | 7800 | 4280x1950X1805 |
