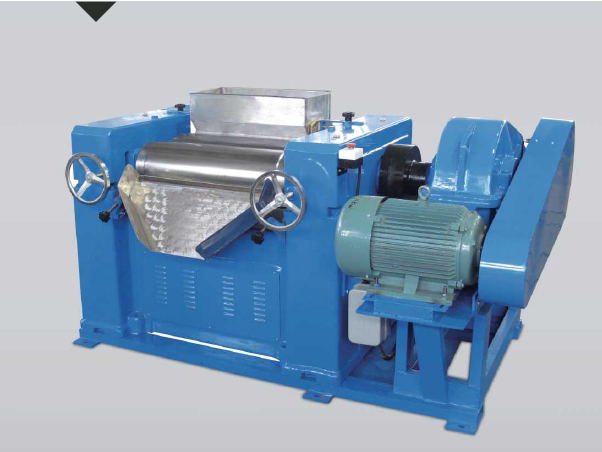

This machine is specifically designed for grinding high-viscosity and high-hardness products. It is an intermediate model between the S-type and SQ-type three-roll grinders, making it particularly suitable for the production of products such as silicone rubber foam, pencil cores, and reflective blue paste.
This model allows for the selection of the most suitable motor power and gearbox type based on the characteristics of the material. Its greatest advantages are stable operation, energy efficiency, and reduced machine maintenance costs.
Product Specifications
Model | Roller Diameter (mm) | Roller Working Length (mm) | Roller Speed (rpm) | Motor Power (kW) | Gearbox Model | Gear Ratio | Machine Weight (kg) | Dimensions (mm) | ||
---|---|---|---|---|---|---|---|---|---|---|
Slow Roller | Medium Roller | Fast Roller | ||||||||
KS260 | 260 | 675 | 13 | 39 | 117 | 11-18.5 | JZQ400-500 | 1:3:9 | 3000 | 2500x1800X1040 |
KS405 | 405 | 810 | 12.2 | 37.6 | 116 | 15-55 | JZQ400-650 | 1:3:9 | 6500 | 2700x2000X1300 |
