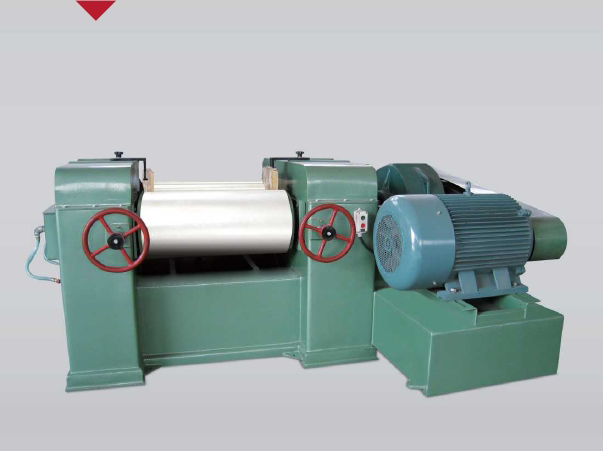

This machine is specifically designed for grinding and mixing materials with extremely high viscosity and hardness. By enhancing key components such as enlarging the roller shaft ends and reinforcing the gears, the machine operates smoothly and reliably, offering immense power. It is an ideal piece of equipment for grinding specialized products like pigments, pencil cores, and attapulgite clay. Additionally, the machine can be customized to meet customer requirements, with options such as water cooling, steam heating, or oil heating configurations.
Product Specifications
Model | Roller Diameter (mm) | Roller Working Length (mm) | Roller Speed (rpm) | Motor Power (kw) | Reducer Model | Speed Ratio | Total Weight (kg) | Overall Dimensions (mm) | ||
---|---|---|---|---|---|---|---|---|---|---|
Slow Roller | Middle Roller | Fast Roller | ||||||||
KS150 | 150 | 300 | 22 | 51 | 118 | 2.2-5.5 | JZQ250 | 1:2.3:5.8 | 800 | 1450x1000X900 |
KS260 | 260 | 675 | 14 | 41 | 117 | 22-37 | JZQ500 | 1:3:9 | 3000 | 2600x1800x1100 |
KS405 | 405 | 810 | 12.2 | 37.6 | 116 | 37-55 | JZQ650 | 1:3:9 | 7500 | 2860x2400x1360 |
