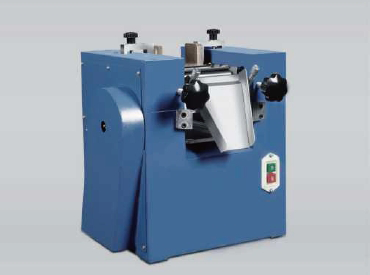

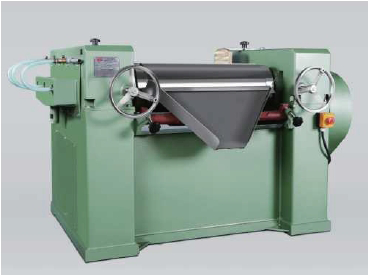

Mainly used for various paste-like materials such as oil emulsions, paints, pigments, soap, artificial leather, plastics, lubricating grease, chocolate, and more. It is particularly suitable for grinding products with high viscosity and fine particle requirements. The machine features a high hardness and durability surface, and is equipped with a cooling system to ensure continuous operation.
Model | Roller Diameter (mm) | Roller Working Length (mm) | Roller Speed (rpm) | Motor | Total Weight (kg) | Dimensions (mm) | ||||
---|---|---|---|---|---|---|---|---|---|---|
Slow Roller | Middle Roller | Fast Roller | Model | Power | Speed | |||||
S65 | 65 | 125 | 26 | 70 | 145 | Y17144 | 0.75 | 1390 | 62 | 380 x 445 x 430 |
S100 | 100 | 250 | 40 | 86 | 186 | Y100L-4 | 1.5 | 1400 | 300 | 800 x 660 x 750 |
S120 | 120 | 280 | 26 | 70 | 186 | Y100L-4 | 1.5 | 1400 | 400 | 830 x 750 x 920 |
S150 | 150 | 300 | 34 | 78 | 180 | Y100L-4 | 2.2 | 1420 | 500 | 820 x 880 x 900 |
S260 | 260 | 675 | 22 | 64 | 182 | Y160L-6 | 7.5 | 970 | 2000 | 1645 x 1350 x 1100 |
SM405 | 405 | 810 | 14 | 43 | 133 | Y180L-6 | 15 | 970 | 4000 | 1950 x 1950 x 1330 |
SM405L | 405 | 1000 | 14 | 43 | 133 | Y180L-6 | 22 | 970 | 4800 | 2140 x 1950 x 1330 |
