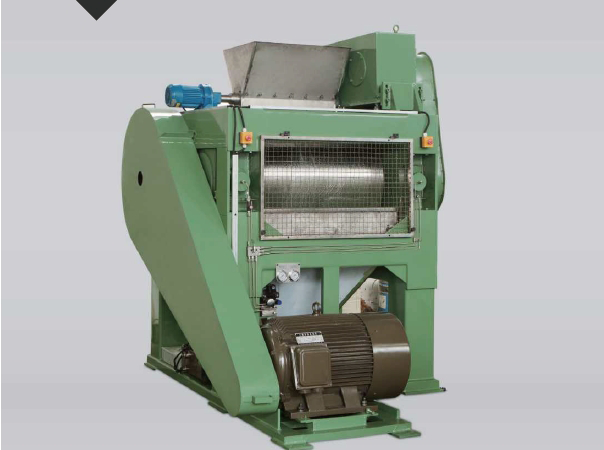

This machine is specifically designed for various powdery, crystalline, and granular materials with poor adhesion to rollers. It has been developed by our company, combining years of practical experience in producing such products abroad with the production conditions in the domestic market. In particular, guar gum processed twice with this machine achieves a quality level surpassing that of countries such as India.
Product Parameters
Specification | Roller Diameter (mm) | Roller Working Length (mm) | Total System Pressure (Mpa) | Main Motor Power (kW) | Pump Motor Power (kW) | Block Roller Speed (kg) | Total Weight (kg) | Dimensions (mm) |
---|---|---|---|---|---|---|---|---|
Two Rollers | 400 | 1000 | 10 | 45-55 | 1.5 | 0-250 | 4000 | 2400x1510x2300 |
Two Rollers | 600 | 1000 | 10 | 55-75 | 1.5 | 0-200 | 7500 | 2400x2050x2650 |
Four Rollers | 400 | 1000 | 10 | 45-55 | 1.5 | 0-250 | 6500 | 2400x1510x2800 |
Four Rollers | 600 | 1000 | 10 | 55-75 | 1.5 | 0-200 | 13500 | 2900x2050x3500 |
