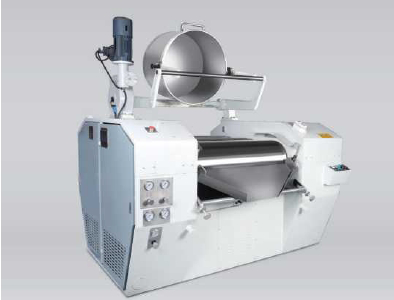

The best advantage of this hydraulic three roll mill is the adoption of inverter for controlling speeds. lt is equipped with mechanical( Or hydraulic) gap adjustment devices which can adjust the gap freely while running , so as to make it into the best condition to process all kinds of high, medium and low viscosity materials. lts production capacity is 3 times bigger than traditional manual three roll mill.
Product Parameters
Roller Diameter (mm) | Roller Working Length (mm) | Roller Speed (rpm) | Height of Discharge Port from Ground (mm) | Main Motor Power (kw) | Total Pressure (Mpa) | Hydraulic Power (kw) | Machine Weight (kg) | Dimensions (mm) | ||
---|---|---|---|---|---|---|---|---|---|---|
Slow Roller | Middle Roller | Fast Roller | ||||||||
150 | 300 | 44 | 103 | 0-240 | 750 | 5.5 | 6.3 | 0.75 | 950 | 1060x1100X1100x650 |
200 | 600 | 52 | 144 | 0-400 | 650 | 11-15 | 6.3 | 1.5 | 1500 | 1420x1210X1100x700 |
260 | 650 | 49 | 140 | 0-400 | 680 | 18.5-22 | 6.3 | 1.5 | 2100 | 1670x1450X1290x900 |
400 | 800 | 31 | 122 | 0-400 | 700 | 30 | 6.3 | 1.5 | 4000 | 2040x1790X1390x1150 |
400 | 1000 | 31 | 122 | 0-400 | 700 | 37 | 6.3 | 1.5 | 4500 | 2240x1790X1390x1150 |
