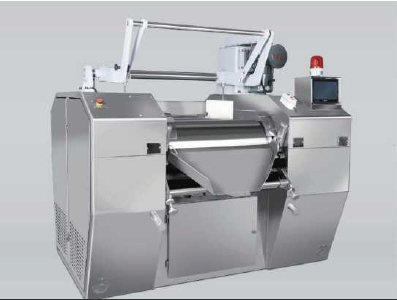

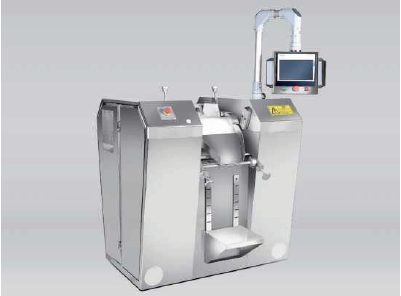

This equipment can be controlled by an optional Siemens Programmable Logic Controller (PLC) for automated production or remote control. It is equipped with a graphical interface touch screen, which facilitates operators to quickly master the operation, making machine operation more precise and stable, and allows for the recording of production data and the realization of data reproducibility.
Product Parameters
Roller Diameter (mm) | Roller Working Length (mm) | Roller Speed (rpm) | Main Motor Power (kw) | Total Pressure of Hydraulic System (Mpa) | Hydraulic Pump Power (kw) | Machine Weight (kg) | Dimensions (mm) | ||
---|---|---|---|---|---|---|---|---|---|
Slow Roller | Middle Roller | Fast Roller | |||||||
150 | 300 | 44 | 103 | 240 | 5.5 | ≤6.17 | 0.75 | 950 | 1060x1100X110x650 |
200 | 600 | 52 | 144 | 400 | 11-15 | ≤6.17 | 1.5 | 1500 | 1420x1210X1100x700 |
260 | 650 | 49 | 140 | 400 | 18.5-22 | ≤6.17 | 1.5 | 2100 | 1670x1450X1290x900 |
400 | 800 | 31 | 122 | 400 | 30 | ≤6.17 | 1.5 | 4000 | 2040x1790X1390x1150 |
400 | 1000 | 31 | 122 | 400 | 37 | ≤6.17 | 1.5 | 4500 | 2240x1790X1390x1150 |
400 | 1300 | 31 | 122 | 400 | 55 | ≤6.17 | 1.5 | 5000 | 2540x1790X1390x1150 |
